First of all, please watch the working video of this tyre cutter machine to cut tires into 3-5cm chips as below.
Attention please, this machine is on special promotion,
the original price is US$2500/- now the promotion price is US$1599 FOB Qingdao,China.
For more machines on promotion, please visit below https://www.usedtirerecycling.com/special-promotion-for-tire-recycling-and-reusing-machines/
Application is cut tires into chips
In Tire Recycling Plant, after using JYQT-38 Tire Strip Cutting Machine(Tire Strip Cutter) cut tires into tire strips, then can use this JYQK-45 Tire Cutting Machine(Tire Block Cutter) to cut the tire strips into tire blocks. The reason why cut into blocks is because tire blocks is much easier to be crushed by Tire Block Crushing Line.
Structure
Mainly consists of framework, motor, V-belt transmission speeding reducing system, material feeding system, 2 rotation knives, 1 fixed knife, etc.
Principle to cut tires
Material Feeding System feed tire strips above the fixed knife, motor drive 2 rotation knives rotate, so that the rotation knives and fixed knifes shear tire strips into tire blocks.
Specification
| Model | JYQK-45 |
| Power: | 11kw |
| Dimension: | 1.13×0.83×1.1m |
| Weight: | 600kg |
| Input: | Tire Strip or other Rubber Strips≤5cm wide |
| Output: | About 3*4cm or 3*5cm tire blocks. |
| Capacity: | 500-1000kgs/hour |
| Knife Quantity: | 2pcs of Rotation Knifes and 1 pcs of Fixed Knife. |
| Blade type and Dimension: | 10x10x100mm YG8 Tungsten Steel |
| Blade Hardness: | 89.5HRA |
| Knife Rotation Speed: | 445rpm. |
| Motor: | Y160M-4,11KW, 1460rpm |
| V-Belt Quantity: | 6pcs |
| Price: | Please Contact us to inquire |
| Delivery Lead Time: | 7-15days(Exclude Legal Holiday). |
Photo Gallery

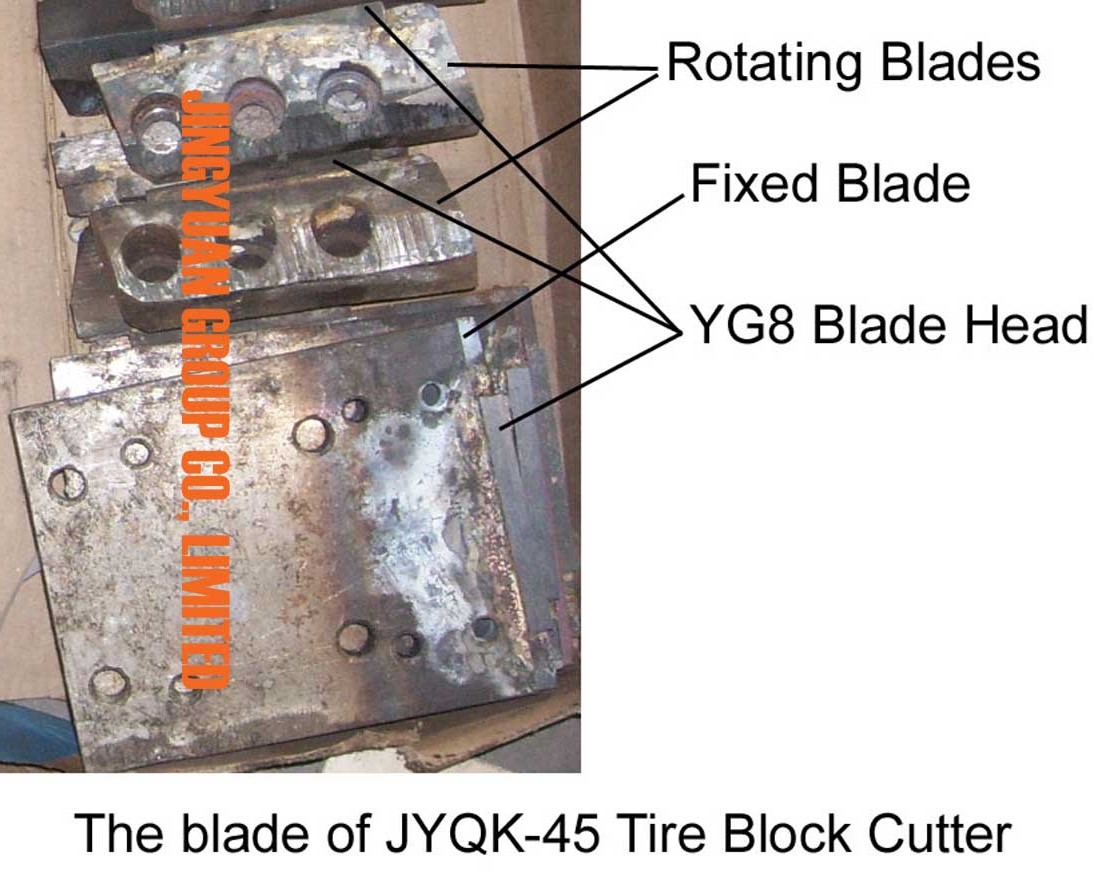

Below photo showing Tyre Cutting Blades
Tyre Cutting Blades is 10*10*100mm YG8 Tungsten Hard Alloy.
At the beginning, some buyers worried that this JYQK-45 Tire Cutting Machine(Tire Block Cutter) may can not cut Steel Belted Radial Tyres, but finally they found that it cutting Steel Belted Radial Tyres faster than cutting Fiber Belted Tyres, because this machine Tyre Cutting Blades adopt YG8 Tungsten Hard Alloy, which can cut steel like cutting mud.
For ensuring the finished is accurate and beautiful, we use computer controlled cutting machine cut the steel part as below photo showing.
JYQK-45 Tire Cutting Machine(Tire Block Cutter) Workshop’s Computer Controlled Cutting Machine.
Below photo showing our JYQK-45 Tire Cutting Machine(Tire Block Cutter) Assembly Workshop.
This assembly working shop evidence that we are professional Manufacturers
Below photo showing load and fix JYQK-45 Tire Cutting Machine(Tire Block Cutter) into container before shipment.
Tire Cutting Equipment,include JYQK-45 Tire Cutting Machine(Tire Block Cutter) in container ready for shipment.
Below photo showing our finished Finished JYQK-45 Tire Cutting Machine(Tire Block Cutter) stocking area, ready to be delivered to tire recycling plants in different countries.
Finished JYQK-45 Tire Cutting Machine(Tire Block Cutter) in Stock.
If this machine can not satisfy your requirement, I think you must need JYQQTK-3845 Three-In-One Tire Cutting Machine as below video showing.From the video, you can see that this tire cutting machine combines the function of JYQQ-1200 Tire Sidewall Cutter, JYQT-38 Tire Strip Cutter and JYQK-45 Tire Block Cutter.
For more details of this machine, please click JYQQTK-3845 Three-In-One Tire Cutting Machine.
