Tire Recycling Machine

Do you want to know how to cut whole tire into block by a small single machine? – JYQQTK-3845 Tire Cutter(Three in One)

Tire Cutter tire cutting machine combines three functions

Tire Cutter tire cutting machine combines three functions

First of all, please watch the video of this Tire Cutter | tire cutting machine combines three functions

Video of JYQQTK-3845 Tire Sidewall-Strip-Block Cutter(Three in One) #machine #factory #recycling

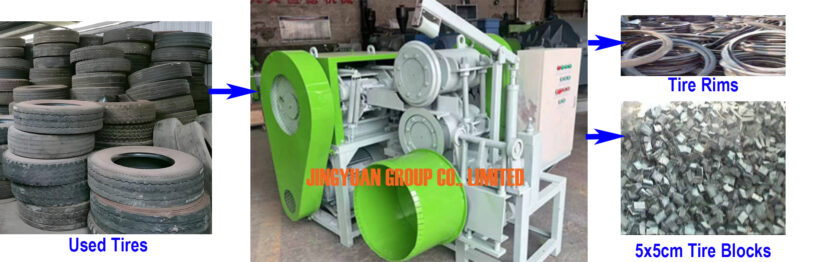

From above video, you can see this tire cutter (Tire cutting machine) combines the functions of tire sidewall cutter, tire strip cutter and tire block cutter in one, can cut whole tire into 3-5cm tire chips directly, only left tire rim.

After cutting by this machine, only left two tire rims, which include tire bead, you know the tire bead is a bunch of thick steel wire, if you want to know how to process them, please visit JYNQ-1200 Tyre Debeader(Separator)

Frame

Mainly consists of frame, transmission system,cylinders for pushing tire, movable tire supporting tray, disc knives, slabbing knives, etc.

Start the motor, one operator put the tire on the movable tire supporting tray and push tray upward button, the movable tire supporting tray will rise, then press “push tire” button, the cylinder will push the tire into the disc knife, the disc knives will cut the tire into strip, the strip will go forward to rotating slabbing knives then be cut into 3-5cm tire blocks automatically till left tire rim only, then downward the tire supporting tray and take off the tire rim will be ok.

Specification of JYQQTK-3845 Tire Cutter.

ModelJYQQTK-3845
Power:40.5kw
Dimension:2.0×1.8×1.6m
Weight:1800kg
Input:Whole tire ≤1200mm in diameter.
Output:3-5cm tire blocks.
Capacity:20-40Tires/hour
Delivery Lead Time:20days(Exclude Legal Holiday).

If this machine is not the one you want, maybe JYLQ-1300 Tire Cutting Machine in below video is the one you want, please watch it.

Video of JYLQ 1300 Tyre Cutting Machine Or Tire Dismembering Machine

Regarding the details, please click here
