Application
Used to separate different sizes of rubber granules or rubber powder. It is also can be used to screen other granulate or powdery products, such as plastic granule, etc.
Structure
It mainly consists of frame, motor, eccenter , link rod, screen net supporter, screen nets, etc.
Principle
Motor drive eccenter rotate as vibrating source, via link prod to pull and push the screen make reciprocating motion, so that different size of rubber or rubber powder will pass different screen net and go out from different outlets.
Specification and Prices
| Model | JYZZS-800 |
| Power: | 3kw |
| Dimension: | 4×0.9x1m |
| Weight: | 600kg |
| Shaft Rotation Speed: | 121rpm or 145rpm |
| Input: | Mixture of different size of Rubber Granule or Rubber Powder. |
| Output: | Separated different size of Rubber Granule or Rubber Powder. |
| Maximum Outlets: | 4 Outlets |
| Capacity: | 1000-1200kgs/hour |
| Delivery Lead Time: | 10days(Exclude Legal Holiday). |
| Price: | Please contact us to inquire |
Photo Gallery

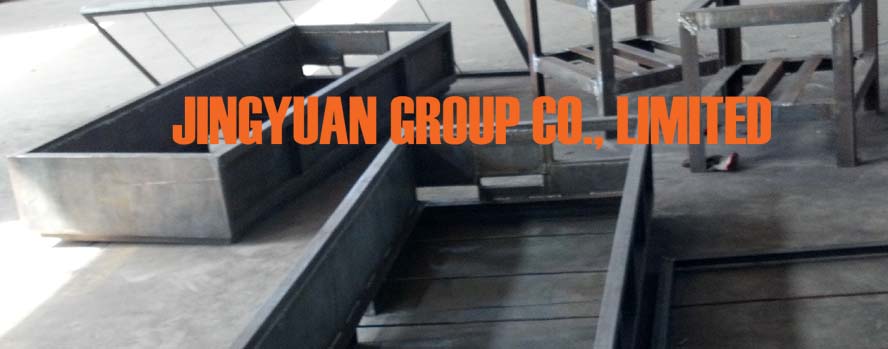

JYZZS-800 Linear Vibrating Screen in Production

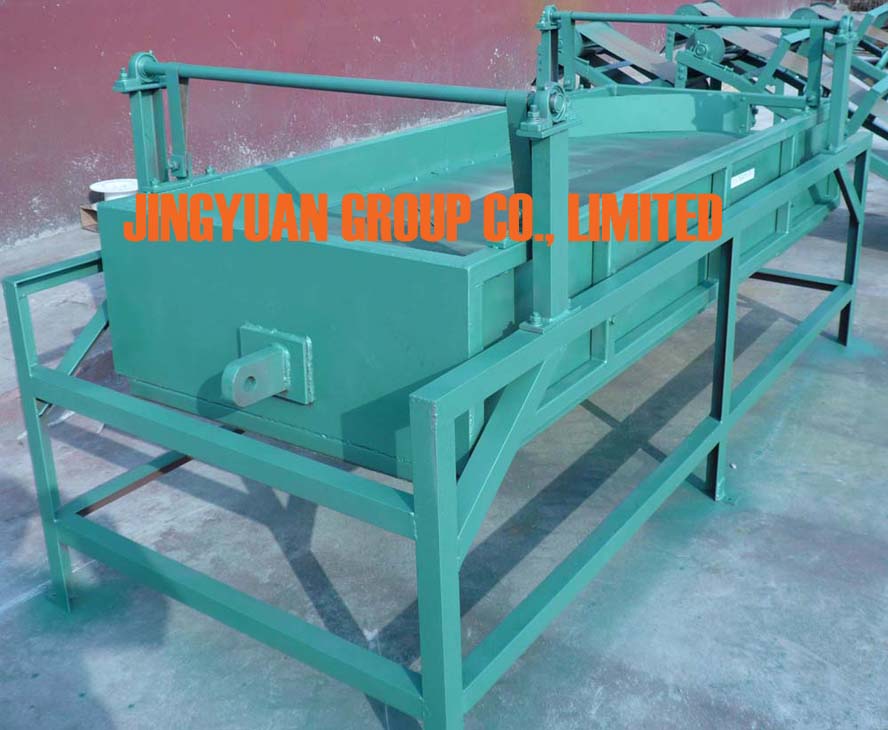

Just Painted JYZZS-800 Linear Vibrating Screen

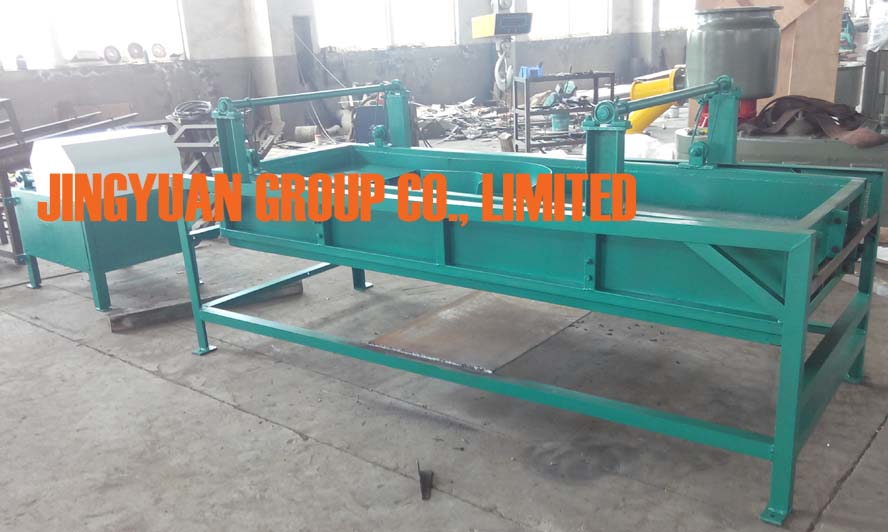

Just Finished JYZZS-800 Linear Vibrating Screen(left is the vibration source, right one is screen body)
JYZZS-800 Linear Vibrating Screen on use
