Application
Used to on-site wet pour pave rubber playfields, such as rubber playground, rubber racetracks, rubber walkway, etc. The material be paved is the mixture of rubber granule and PU binder mixed by JYJB-200 Tilting Wet Pour Mixer or 250L Rubber Crumb Mixer. The Rubber Granule can be EPDM rubber granule and Recycled SBR granule recycled from various waste rubber products or recycled from waste tires.
Structure
It is mainly consist of frame, motor, inverter, control panel, heating plate, trowel heater, temperature controller, steel tracks, hydraulic cylinder, thickness adjusting mechanism, operator chair, moving tires, etc.
Principle
Motor drive steel tracks rotate to make the machine forward and drive the heating plate make reciprocating motion, so that to press and heat cure the wet pour rubber granule on ground.
Specification and Prices
| Model | JYTP-1200 | JYTP-1500 | JYTP-1800 | JYTP-2500 |
| Power: | 5.5kw | 5.5kw | 5.5kw | 8kw |
| Dimension: | 1.5×1.8×0.72m | 1.8×1.8×0.72m | 2.2×1.8×0.72m | 3×1.8×0.72m |
| Weight: | 500kg | 600kg | 700kg | 900kg |
| Paving Width: | 1200mm | 1500mm | 1800mm | 2500mm |
| Paving Speed: | 0.8-6m/min | 0.8-6m/min | 0.8-6m/min | 0.8-6m/min |
| Max Heating Temperature: | 90oC | 90oC | 90oC | 90oC |
| Hydraulic Cylinder Work Pressure: | 8mpa | 8mpa | 8mpa | 8mpa |
| Paving Capacity: | 120m2/hour | 150m2/hour | 180m2/hour | 250m2/hour |
| Delivery Lead Time: | 20days(Exclude Legal Holiday). | |||
Photo Gallery

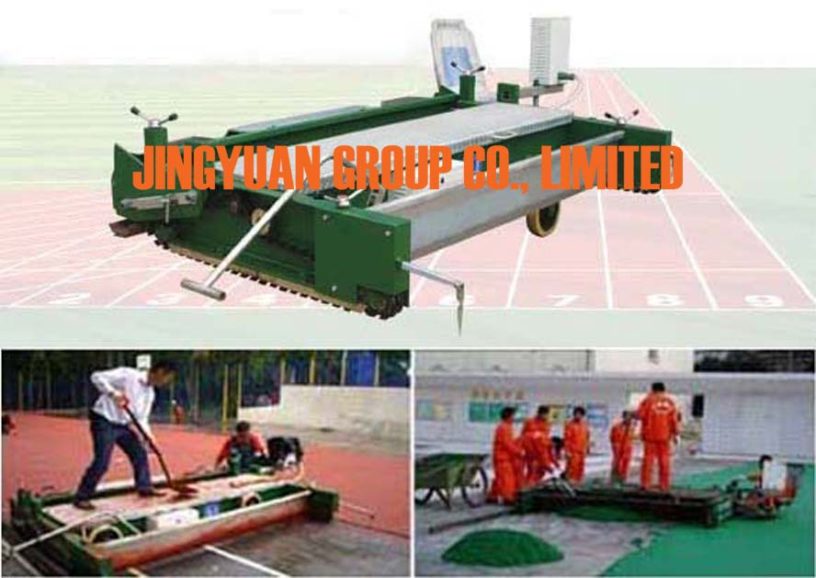

Front View of JYTP Series Wet Pour Rubber Paving Machine Before Packing
Side View of JYTP Series Wet Pour Rubber Paving Machine In Packing Area
JYTP-1200 Mini Wet Pour Rubber Paving Machine
JYTP Series Wet Pour Rubber Paving Machine is Paving Rubber Playground Bottom Black SBR layer
Video
Attention Please: When making this video,
works well in China, but now it does not work in China, so that you can not contact us by , if you want co contact us, please click here to contact us by other ways.
Rubber playgrounds, such as rubber racetracks, normally made with two layers. The bottom layer adopts less PU binder mix SBR, which is recycled from various rubber products or recycled from used tires, and continuously paved by this series rubber paving machine. The top layer adopts more PU binder mix EPDM granules and EPDM Powder, which can be paved by this series rubber paving machine, too. But for ensuring the roughness, friction, and durability, it is better to be sprayed by JYPT-120 Wet Pour Rubber Sprayer.
More from my site
JYHX-100 Line Marking Machine
JYPT-120 Wet Pour Rubber Sprayer
Do you have international business?
The Utilization of Waste Tires in the Production of Rubber Flooring
200X160mm I-Shaped Interlocking Rubber Floor Tile Molding Mold(6 Cavities Per Female Mold)
500X500mm Round Dot Surface Square Rubber Floor Tile Molding Mold(1 Cavity Per Female Mold)
Colby Freeman
I need someone to send me information on purchasing a JYTP-1200 and shipping to Texas at a 79602 Zip Code. I also have questions regarding how this product can be used with the EPDM granules that we currently use in addition to the PU binder that we currently use. Additional questions would include power source, additional equipment that would have to purchased to use this paver and how easy this product is to clean for longevity of the product. Is it possible to speak with someone on the phone?
admin
Hello, Mr. Colby Freeman,
Thank you for your inquiry about JYTP-1200 Wet Pour Rubber Paving Machine.
Regarding how to use JYTP-1200 with the EPDM granules in addition to the PU binder, it is exactly the same as use JYTP-1200 with the EPDM granules with the black SBR granules in addition to the PU binder as shown in the video on page of http://www.usedtirerecycling.com/jytp-series-wet-pour-rubber-paving-machine/.
The power source requirement is 5.5Kw.
Additional equipment is mixers, if you want to save money, you can buy one 250L mixer as shown on http://www.usedtirerecycling.com/rubber-crumb-mixers/. If you want to remove the mixer and mixed material much easier, you can buy one JYJB-200 Hydraulic Tilting Type Wet Pour Mixer as shown on http://www.usedtirerecycling.com/jyjb-200-hydraulic-tilting-type-wet-pour-mixer/.
Regarding how to clean for longevity, just use brush and xylene to clean the paving plate will be ok.
Regarding speak someone on the phone, you can call 0086-13553068614, frankly speaking, we prefer to be communicate by Email or whatsapp, because these two methods are much easier to keep the communication record.
By the way, I just sent you an Email, please check it in your Email inbox or spam box, so that we can communicate by Email instead of commenting here, Ok?
Best regards,
Eric Chen
David
Need prices for all your eq
admin
Hello, David, Thank you for inquiry about our rubber wet pour paving machines, we just send all our rubber wet pour paving machines, include big area wet pour paving machine and small area wet pour paving, to your mail, please find them in your Email inbox or spam box. Best regards, Admin
Dean Mandryk
Hi, I am interested in you JYTP 1200 wet pour rubber paving machine and your JYJB 200 mixer. Please send me technical data, costing and shipping to Western Canada.
Can these machines meet the CSA certification to come into Canada ?
Thank you
Dean
admin
Hello,Dean Mandryk, Thank you for inquiry. We just send the price files to your Email. Please find the file in your Email inbox or spam box. Best Regards, Admin
Ray
Hi. I’m interested in learning more about the small paving machine. We currently do rubber surfacing for driveways and swimming pool decks. Prices, maintenance required, better videos are appreciated
jeffrey
Hi i am interested in pricing and shipping to canada
admin
Hello,Jeffrey, thank you for inquiry. We just send the price and details to your Email, please find the files in the inbox or spam box of your Email. Best regards, Admin.
Raman Wahi
Dear sir, please let me know the prices of the machines and the costing of the roads made by crumb rubber .thanks
admin
Hello,Raman Wahi, first of all, please note: this machine is not the machine to pave road, it is used to pave rubber playing fields, such as rubber racetrack, etc. By the way, we already send the price of the machine details to your email, now you can find the files in the inbox or spam box of your Email, please. Best regards, Web Master
Don
Hi, I am interested in you JYTP 1200 wet pour rubber paving machine and your JYJB 200 mixer. Please send specs, pricing and shipping to Ontario Canada.
Any deals on volume purchase?
admin
Hello, Don, thank you for inquiry about our rubber mixer and rubber wet pour paving machines, we just sent the price and details of the machine to your Email. Now you can see the file in the inbox or spam box of your Email, please. Best regards, Web Master.
Oscar Ramos
Greetings
I need information on purchasing a JYTP-1200 and shipping to Colombia. I need you FOB price and if you train my people or you can send somebody to use the machine.
admin
Hello, Oscar Ramos, thank you for inquiry, we have replied your inquiry to your Email with price, details and suggestion, now you can find the file in the inbox or spam box of your Email, please. Best regards, Web Master
Jeff Bernard
I need someone to send me information on purchasing a JYTP-1200 and shipping to North Carolina at a 28557 Zip Code. I also have questions regarding how this product can be used with the EPDM granules that we currently use in addition to the PU binder that we currently use. Additional questions would include power source specifically what US voltage…110V or 220V, additional equipment that would have to purchased to use this paver and how easy this product is to clean for longevity of the product.
admin
Hello, Jeff Bernard, thank you for inquiry about our JYTP-1200 Paving Machine, we just replied your questions via Email, now you can find the file and our answer to your question in the inbox or spam box of your Email, please. Best regards, Web Master.
Minijus
Hello,
Could you send me please you price list for rubber paving machines?
Thanks a lot
admin
Hello, Minijus, thank you for inquiry about our rubber paving machine, we just sent the price list to your Email, now you can find the file in the inbox or spam box of your Email, please. Best regards, Web Master
Jarusuda
Hello, I’m interested in your product. (JYTP Series Wet Pour Rubber Paving Machine) If possible, I want the machine to have a width of paving 2800 mm. Do you have it? Could you please send me the details, spec and price, all model you have. Thank you.
admin
Hello, Jarusuda, thank you for inquiry about our JYTP Series Wet Pour Rubber Paving Machine. We just sent the price and details of our rubber paving machine to your Email, now you can find the file in the inbox or spam box of your Email, please. Best regards, Web Master.
