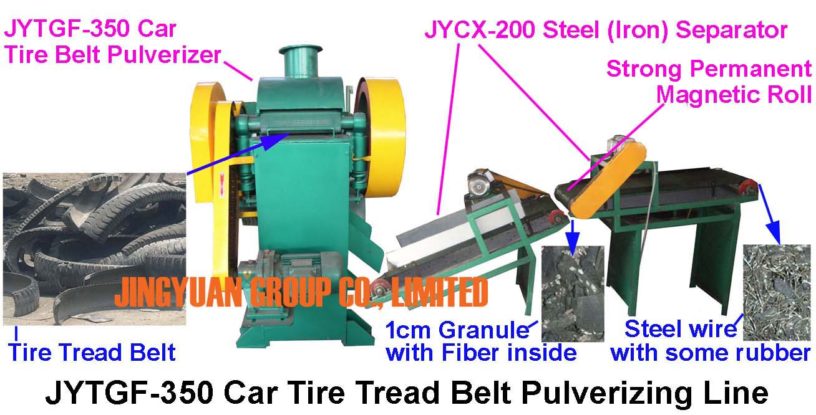

JYTGF-350 Tire Tread Belt Pulverizing Line(Car Tire Tread Special Crusher)

JYTGF-350 Car Tire Recycling Machine

JYTGF-350 Car Tire Recycling Machine

Car Tire Recycling Machine,Recycling Car Tires,Separate Fiber and Steel. www.usedtirerecycling.com

Application

Almost all tire recycling companies are puzzled about how to recycle car tires, because Car tire treads has both fiber and steel wires inside, if crush directly, the fiber will form flossy balls, which is very easy to be hooked by steel wires, so that can not separate steel and fiber completely. This machine will solve the puzzle, because it only can crush the steel wire out, all fibers stay inside the rubber granules, so that can separate steel before fiber come out.

Structure

Mainly consists of frame, main motor, feeding gear motor, shaft, V-belt transmission system, feeding wheel, fixed knives and rotation knives, steel(iron) separator, etc.

Principle

The Gear motor drive feeding wheel feed the car tire treads in, the main motor drive the shafts and rotation knives rotate, to make relative motion with fixed blades, so that to strip and shear the car tire treads to 1cm granules and slide to the JYCX-200 Steel(Iron) Separator to remove the steel wire(With some rubber on), in this whole process, almost no fiber come out.

Specification and Prices

Model JYTGF-350
Power: 33kw
Dimension: 4.2x1x1.5m
Weight: 1350kg
Input: Car tire tread belts.
Output: 1cm Rubber Granule(has fiber side) and Steel Wire(With some Rubber).
Capacity: 400-500kgs/hour
Knife Quantity: 12pcs(8 rotation knives and 4 fixed knives)
Blade Material: YG10 Tungsten Steel
Knife Hardness: 92HRA
Delivery Lead Time: 10days(Exclude Legal Holiday).
Price: Please Contact us to inquire

Material Photo

1cm size Recycled Car Tyres Rubber Granules

1cm size Recycled Car Tyres Rubber Granules, hardly find steel on them.

Recycled Car Tyre Steel Wire With Some Rubber on,can be crushed together with steel radial tyre blocks, avoid the steel wire to hook recycled tire fiber balls

Recycled Car Tyre Steel Wire With Some Rubber on, hardly can find fiber on them.

If you crush above two granules separately, then you can avoid the problem of the fiber ball and steel wire to hook each other, so that to separate them completely, right?
