Rubber Cutting Machine

Application

The machine is mainly applicable to cutting natural rubber, synthetic rubber and reclaimed rubber, and other plastic materials, especially suitable for installing near the banbury mixer, so that the output small pieces to be filled to banbury mixer directly.

Structure

This machine mainly has a cutting knife, rack, working oil cylinder, base, auxiliary working table and hydraulic system, electrical system, and other parts, the bottom of the rubber knife is equipped with nylon pad, to protect the knife blade.

Principle

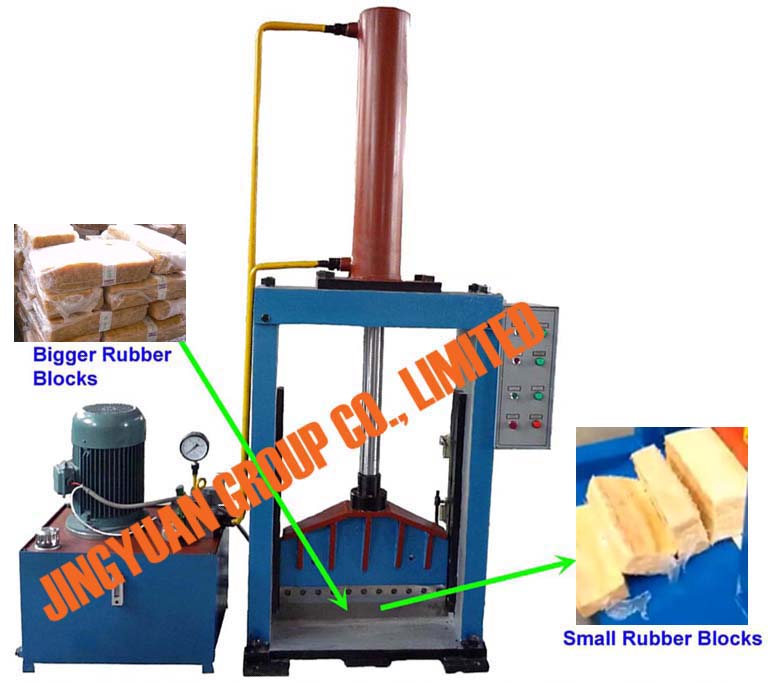

When it work, motor drive piston make reciprocating motion, so that to cut the bigger rubber blocks into small blocks by hydraulic power. Put the bigger rubber blocks under the cutting knife, and then press the Start button, the hydraulic oil drive the knife along the rack downwards to cut raw materials. There are upper and lower two limit switches to change the direction of the cutter’s movement and protect the cutting knife.

Specification and Prices

Model QJ-660 QJ-760 QJ-800 QJ-1000 QJ-1250
Cutting Width 660mm 760mm 800mm 1000mm 1250mm
Hydraulic Pressure 80KN 120KN 160KN 300KN 1000KN
Cutting Knife Stroke 650mm 650mm 680mm 1100mm 1100mm
Reciprocating time 20-30S 20-30S 20-30S 20-30S 20-30S
Motor Power 5.5KW 5.5 7.5KW 7.5KW 11KW
Dimension(m) 2.2×0.5×2.5 2.3×0.5×2.8 2.4×0.5×3 2.5×0.6×3.5 3×1.9×3.8
Weight 1500kg 1800kg 2000kg 2800kg 3200kg
Price

(FOB Qingdao,China)

Please contact us to inquire Please contact us to inquire Please contact us to inquire Please contact us to inquire Please contact us to inquire
Production Lead Time 30 Days 30 Days 30 Days 30 Days 30 Days
