First of all, please watch the video of this car tire debeader machine
If you think it is car tire debeader machine is too small for you, please see our bigger model by click JYLS-1200 Tire Debeader or JYNQ-1200 Tire Bead Separator.
Application

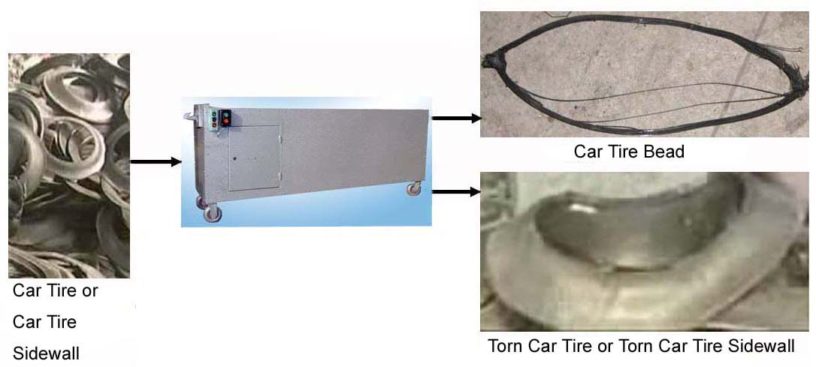

Adopts Hydraulic as power, draw tire bead thick steel wire out from car Tires≤750mm in diameter.
Structure
This is machine consists of motor, oil tank, hydraulic cylinder, extracting hook, extracting mouth, machine frame, etc.
Principle of JYLS-750 Car Tire Debeader Machine
The motor drive the hydraulic cylinder making reciprocating motion, so that to extract the tire bead thick steel wire out.
Specification of JYLS-750 Car Tire Debeader Machine
| Model | JYLS-750 |
| Power: | 5.5kw |
| Dimension: | 2.3×0.5x1m |
| Weight: | 600kg |
| Input: | Car Tires≤750mm in diameter |
| Output: | ≤750mm Torn Car Tire and Car Tire Bead Thick Steel Wires |
| Capacity: | 50-70Tires/hour |
| Plunger Piston Maximum Stroke: | 900mm |
| Maximum Size Tires: | 750mm in diameter. |
| Maximum Drawing force: | 50Kilonewton. |
| Max Reciprocating Motion Frequency: | 2 cycle/minutes |
| Delivery Lead Time: | 10days(Exclude Legal Holiday). |
| Price: | Please contact us to inquire |
