Application
Shred debeaded tire sections or whole debeaded tires up to 90cm into 5*5cm tire scraps.
Structure

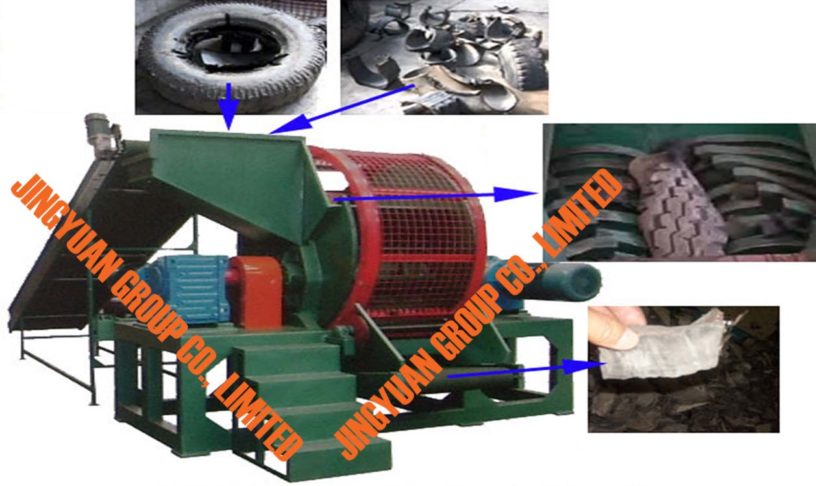

Mainly consists of Frame, Motor, Harden Teeth Gear Reducers, Shafts, Knives, Belt Conveyors, Rotation Screen, etc.
Principle
Conveyor to sent the debeaded tires into the shredding chamber, main motors drive knives making relative motion to shear tires into strips, the strips can not pass the screen net, so that to be fed to shredding chamber to be shred again till reach size of 5*5cm and go out from screen net holes, then be sent out by output belt conveyor.
Specification and Prices
| Model | JYLP-900 |
| Power: | 64kw |
| Dimension: | 7.5x3x2.9m |
| Weight: | 6000kg |
| Input: | Debeaded Tires≤800mm in diameter |
| Output: | About 5*5cm tire blocks |
| Capacity: | 1000-1500kg/hour |
| Knife Qty: | 18pcs |
| Knife Rotation Speed: | 16rpm |
| Knife Feature: | Adopts Hard Alloy Building Up Technology,high hardness,high abrasion resistance,can be repeatedly built up and reused. |
| Knife Hardness: | 58-60HRC |
| Control Panel: | CHNT or Delixi Panel with Star-Delta Starting System. |
| Delivery Lead Time: | 30days(Exclude Legal Holiday) |
| Price: | Please contact us to inquire |
