Tire Recycling Machine

JYLP-1700 Tire Shredder

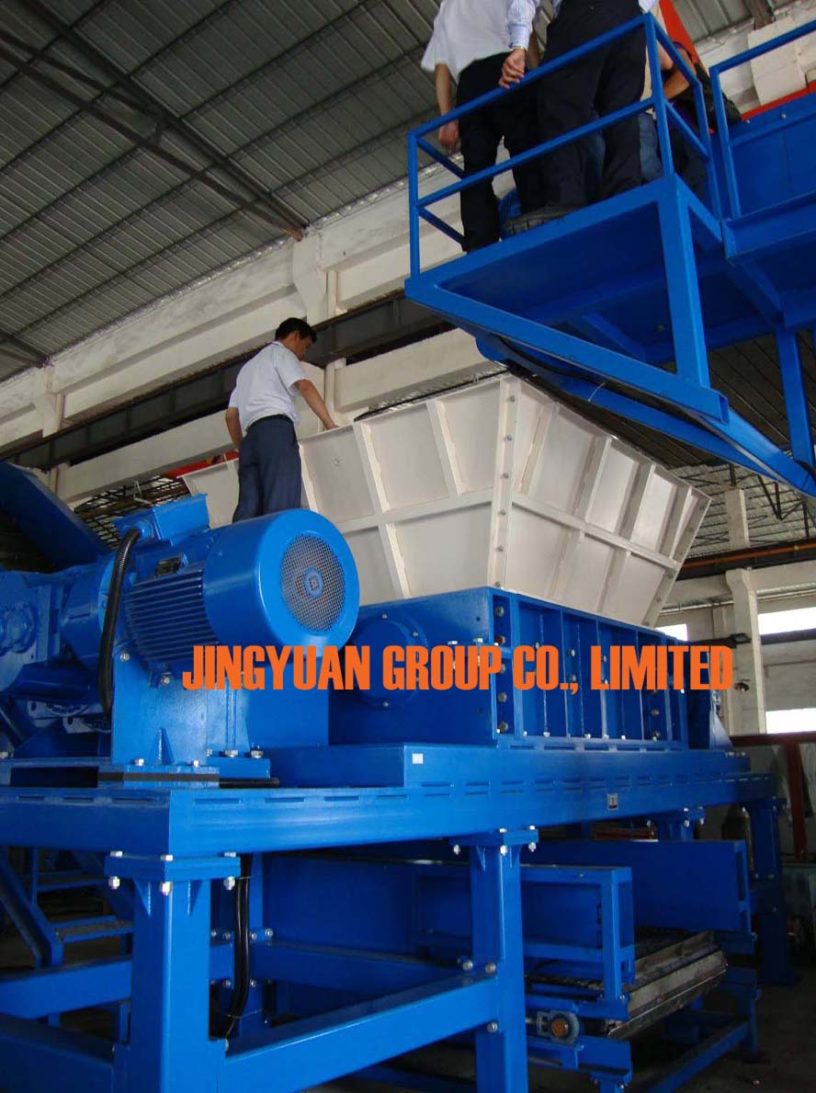

Just Installed JYLP-1700 Tire Shredder in Tire Recycling line

Just Installed JYLP-1700 Tire Shredder in Tire Recycling line

Application

Shred tires up to 170cm into tire scraps. It also can be used to shred metal plate, metal barrel, even car shells into metal scraps.

Structure

Mainly consists of Frame, Motor, Harden Teeth Gear Reducers, Shafts, Knives, Hydraulic Material Pressing System, Stairs, etc.

Principle

When feed used tires or metal plate, metal barrel, car shells into the shredding chamber, main motors drive knives making relative motion to shear them into scraps. For some wide material, the hydraulic material pressing system can press them to be shredded.

Specification and Price

Model JYLP-1700
Power: 150kw
Dimension: 6.5×3.8×4.5m
Weight: 25000kg
Input: Tires≤2000mm in diameter,or metal plate, metal barrel, or car body,etc
Output: About 5cm wide scraps,if add screening machine and returning conveyor, can get 5x5cm scraps.
Capacity: 4000-5000kg/hour
Knife Qty: 34pcs
Knife Rotation Speed: 10rpm
Knife Feature: CR12MOV
Knife Hardness: 58-62HRC
Control Panel: CHNT or Delixi Panel with Star-Delta Starting System.
Delivery Lead Time: 60days(Exclude Legal Holiday).
Price: Please contact us to inquire
Feeding Conveyor or JYLP-1700 Tire Shredder

Feeding Conveyor or JYLP-1700 Tire Shredder
