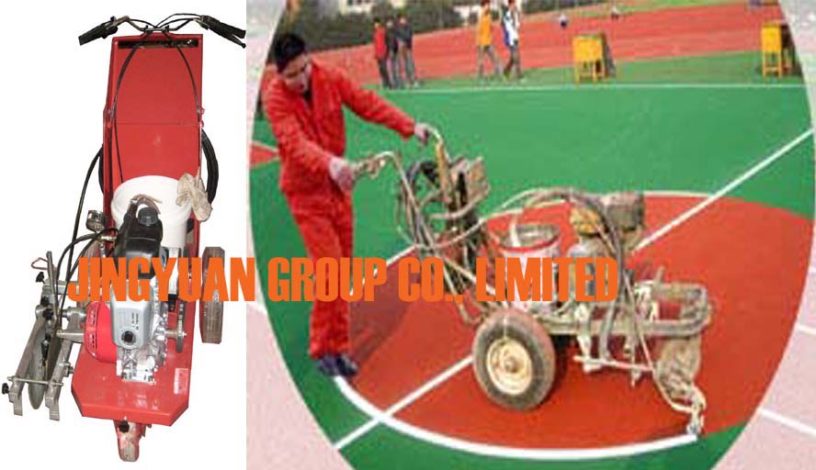

JYHX-100 Line Marking Machine

JYHX-100 Line Marking Machine

JYHX-100 Line Marking Machine

Application

After paving rubber playground by JYTP Series Wet Pour Paving Machine or JYPT-120 Wet Pour Rubber Sprayer, need to mark lines on them. If mark the lines by manual, not only waste time, but also can not ensure the line beautiful. JYHX-100 Line Marking Machine can spray paint lines to rubber playground surface and other site surface, such as road surface, parking lot surface, etc.

Structure

It is mainly consist of Frame, Gasoline Motor, Paint Barrel, Diaphragm Pump, Pipes, Airless Spray Gun, Handle, Tires, etc.

Principle

Gasoline Motor Drive the Diaphragm Pump rotate, so that pump the paint from the paint barrel into Airless Spray Gun, and the pump pressure will drive the Airless Spray Gun to spray out the paint to the ground to mark lines.

Specification and Prices

Model: JYHX-100
Dimension: 1.5×0.6×0.8m
Weight: 80kgs
Motor: Gasoline Motor
Motor Gasoline Tank Capacity: 1.2Liter
Gasoline Consumption 327g/KWT
Paint Barrel Capacity: 16L
Max Paint Flow: 1.2L/Mintues
Marking Capacity: 500-3000meter/hour
Max Paint Temperature: 43oC
Price: Please contact us to inquire
Delivery lead time: 20days(Exclude Legal Holiday).
Photo Gallery
Front View of JYHX-100 Line Marking Machine

Front View of JYHX-100 Line Marking Machine

Left Side View of JYHX-100 Line Marking Machine

Left Side View of JYHX-100 Line Marking Machine

Right Side View of JYHX-100 Line Marking Machine

Right Side View of JYHX-100 Line Marking Machine

Back View of JYHX-100 Line Marking Machine

Back View of JYHX-100 Line Marking Machine

Stock Area of JYHX-100 Line Marking Machine

Stock Area of JYHX-100 Line Marking Machine
