Application
It adopts Strong Permanent Magnets fabricate one Magnetic Core, and adopts Weak Permanent Magnets fabricate the other Magnetic Core, ideal to pick out Iron/Steel powder from rubber granule or rubber powder recycled from used tires.
Structure
It mainly consists of feeding hopper, frame, motor, two magnetic cores, two rotating rolls and transmission chains, etc.
Principle
When the material falling inside from the hopper, the magnetic cores will pick out the Iron/steel powder to the rotating rolls, Motor drive the rotating rolls rotate to remove the Iron/steel powder and release them to the Iron/Steel powder outlets.
Specification and Prices
| Model | JYCX-202 |
| Power: | 0.75kw |
| Dimension: | 0.8×0.7x1m |
| Weight: | 140kg |
| Rotating Roll Diameter: | 200mm |
| Rotating Roll Speed: | 46rpm |
| Input: | ≤Mixture of Rubber Crumb and Iron/Steel Powder. |
| Output: | ≤Separated Rubber Crumb and Iron/Steel Powder. |
| Capacity: | 500-1000kgs/hour |
| Magnetic Core Quantity: | 2pcs |
| Magnet Type: | Strong Magnet and Weak Magnetic |
| Delivery Lead Time: | 20days(Exclude Legal Holiday). |
| Price: | Please Contact us to inquire |
Photo Gallery

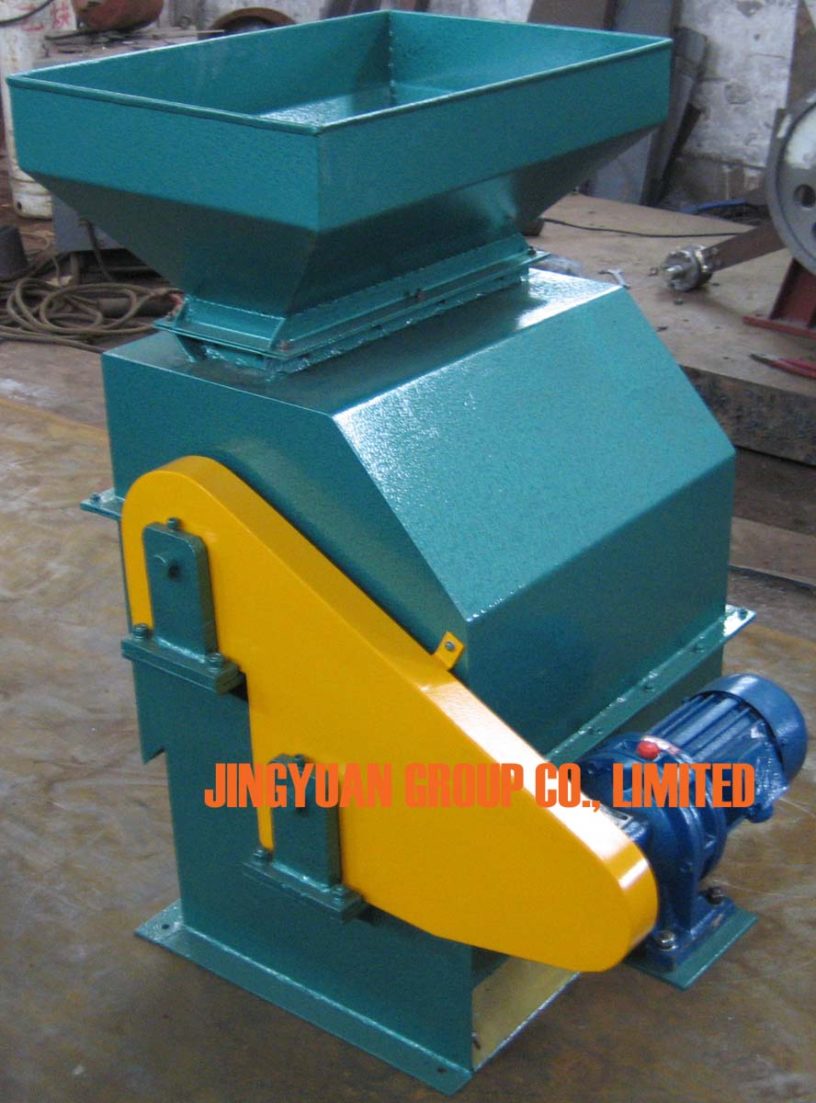

Front View JYCX-202 Double Core Magnetic Separator(Ideal to Separate Iron and Steel Powder)
Back View JYCX-202 Double Core Magnetic Separator
Left View JYCX-202 Double Core Magnetic Separator
Right View JYCX-202 Double Core Magnetic Separator
One Belt Conveyor Feed one JYCX-202 Double Core Magnetic Separator
JYCX-202 Double Core Magnetic Separator Installed Above One Vibration Screen
JYCX-202 Double Core Magnetic Separator Built in Multi-crusher Tire Block Crushing Line
