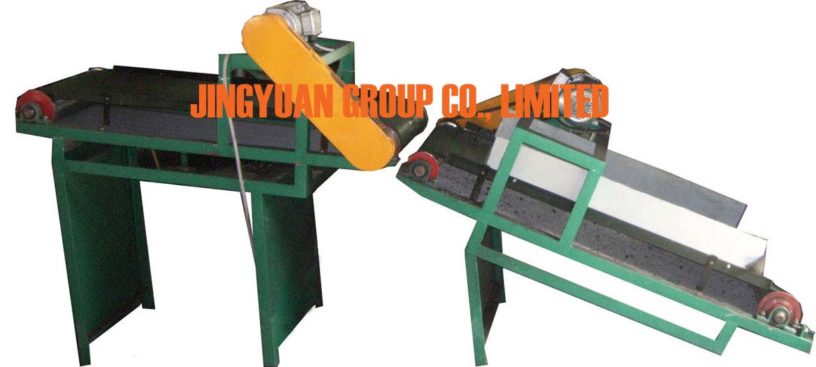

JYCX-200 Magnetic Conveyor

JYCX-200 Magnetic Conveyor

JYCX-200 Magnetic Conveyor

Application

It adopts Strong Permanent Magnet fabricate magnetic roll, used to picked out Iron/Steel from rubber crumb, etc.

Structure

It mainly consists of two belt conveyors, one is lower with two normal rolls, the other one is higher with one Magnetic Roll and one normal roll, each belt conveyor consists of frame, motor, conveyor belt, etc.

Principle

Two motor drive two conveyor belt move forward, feed the mixture of rubber and Iron/Steel on the lower belt conveyor, the rubber crumb will fall down at the end of the lower belt conveyor, the Iron/Steel will be picked out by higher belt conveyor and continue forward and fall down at the end of the higher belt conveyor, so that to separate rubber crumb and Iron/Steel.

Specification and Prices

Model JYCX-200
Power: 2.2kw
Dimension: 2.6×0.6×1.3m
Weight: 200kg
Shaft Rotation Speed: 127rpm
Input: ≤Mixture of Rubber Crumb and Iron/Steel.
Output: ≤Separated Rubber Crumb and Iron/Steel.
Capacity: 300-1000kgs/hour
Magnetic Roll Quantity: 1pcs
Magnet Type: Strong Magnet
Delivery Lead Time: 10days(Exclude Legal Holiday).
Price: Please Contact us to inquire

 Photo Gallery

JYCX-200 Magnetic Conveyors in Stock

JYCX-200 Magnetic Conveyors in Stock

JYCX-200 Magnetic Conveyors in Container Before Shipment

JYCX-200 Magnetic Conveyors in Container Before Shipment

Finished JYCX-200 Magnetic Conveyors Ready for Shipment

Finished JYCX-200 Magnetic Conveyors Ready for Shipment
