Tire Recycling Machine

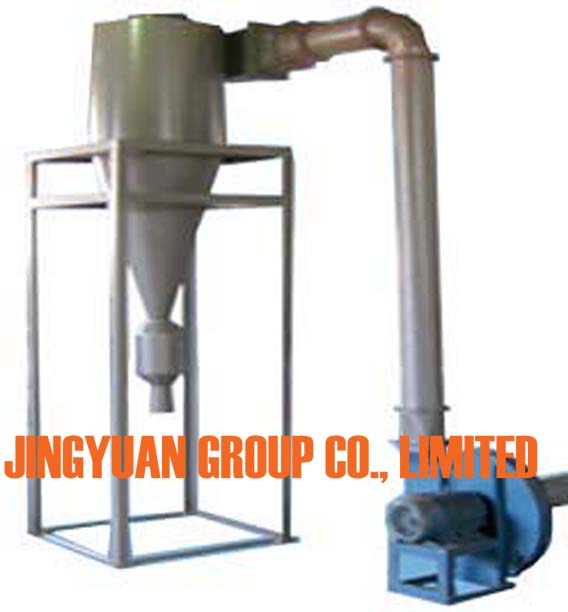

JYC-100 Whirlwind Collecting Machine

JYC-100 Whirlwind Collecting Machine

JYC-100 Whirlwind Collecting Machine

Application

It adopts blower wind to collect crumb products such as rubber crumb, plastic crumb from other machine side, it also can be used to collect dust or fly fiber from other machine above.

Structure

It mainly consists of frame, motor, blower, pipe, cyclone hopper, etc.

Principle

Two motor drive blower to form the air flow to suck crumb products or dust into pipes and cyclone hopper, the whirlwind in the cyclone hopper will make the crumb products falling down to bags and make the dust or fly fiber going up with the upping air to open air, if you do not want to dust or fly fiber to open air, you can make the upping air pass a dust collecting fiber bag to collect the dust and fly fiber, because air can pass the fabric, the dust or fiber fiber can not pass.

Specification and Prices

Model JYC-100
Power: 3kw or 5.5kw or 7.5kw.
Dimension: Need to customized according to other machines
Weight: 200-300kg
Shaft Rotation Speed: 2880rpm
Input: ≤Crumb Material or Dust or Fly Fiber To be Collected.
Output: ≤Collect Crumb Material or Dust or Fly Fiber in bags.
Capacity: 1000-1200kgs/hour
Blower Quantity: 1pcs
Delivery Lead Time: 10days(Exclude Legal Holiday).
Price: Please contact us to inquire

Photo Gallery

JYC-100 Collecting Machine Collect Rubber Crumb From Outlet of JYLS-500 Rubber Granulator

JYC-100 Collecting Machine Collect Rubber Crumb From Outlet of JYLS-500 Rubber Granulator

JYC-100 Collecting Machine Collect Dust From Top of Two JYLS-500 Rubber Granulator Machines

JYC-100 Collecting Machine Collect Dust From Top of Two JYLS-500 Rubber Granulator Machines

JYC-100 Collecting Machine Collect Superfine Rubber Powder From Outlet of Rubber Grinding Machines

JYC-100 Collecting Machine Collect Superfine Rubber Powder From Outlet of Rubber Grinding Machines

Video

Attention Please: When making this video, Whatsapp works well in China, but now it does not work in China, so that you can not contact us by Whatsapp, if you want co contact us, please click here to contact us by other ways.

By the way, this machine is on special promotion, the original price is US$1800/- now the promotion price is US$599 FOB Qingdao,China.

This image has an empty alt attribute; its file name is Limited-Quantity-at-this-price.jpg

For more machines on promotion, please visit below https://www.usedtirerecycling.com/special-promotion-for-tire-recycling-and-reusing-machines/
