Application
This machine mainly to mix rubber granules for making rubber tile use, it also can be used to mix other material, such as plastic granule, feedstuff, sand,etc.
Structure

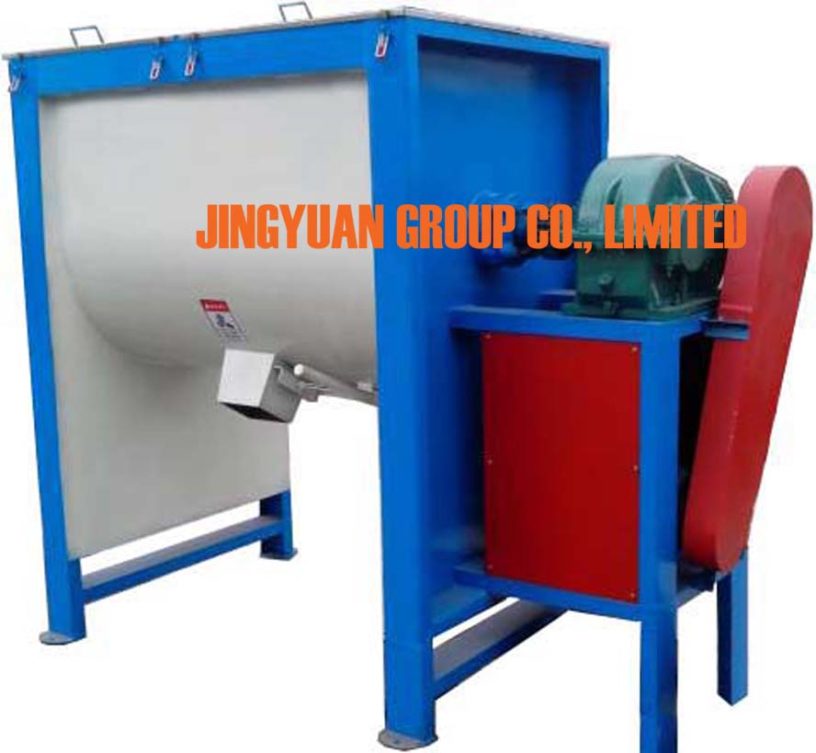

This mixer consists of Frame, Motor, Speed Reducing System, Stirring Rotor, Horizontal Barrel , etc.
Principle
Fill material in the barrl turn on motor, the motor will drive stirring shaft to mix the material, open the discharge door, the material will be driven out from the door.
Specification and Prices
| Model: | 100L | 200L | 300L | 500L |
| Power: | 2.2kw | 3kw | 4kw | 5.5kw |
| Stirring Speed: | 30rpm | 30rpm | 30rpm | 30rpm |
| Barrel Capacity: | 100L | 200L | 300L | 500L |
| Dimension: | 1.2×0.6×0.9m | 1.6×0.6×1.0m | 1.9×0.7×1.1m | 2.2×0.8×1.2m |
| Weight: | 100kgs | 180kgs | 260kgs | 380kgs |
| Production Lead Time: | 20Days | 20Days | 20Days | 20Days |
| Price(FOB Qingdao,China): | Please contact us to inquire | Please contact us to inquire | Please contact us to inquire | Please contact us to inquire |
| Model: | 1000L | 2000L | 3000L |
| Power: | 7.5kw | 11kw | 15kw |
| Stirring Speed: | 30rpm | 30rpm | 30rpm |
| Barrel Capacity: | 1000L | 2000L | 3000L |
| Dimension: | 2.6×1.2×1.6m | 3.0×1.2×2.0m | 3.3×1.2×2.2m |
| Weight: | 800kgs | 1200kgs | 1800kgs |
| Production Lead Time: | 20Days | 20Days | 20Days |
| Price(FOB Qingdao,China): | Please contact us to inquire | Please contact us to inquire | Please contact us to inquire |
Stirring Rotor of Horizontal Mixer
Single Phase Horizental Wet Pour Rubber Mixer
