JYXF-500 Fiber Separator

Application

After processing by Tire Block Crushing Line, due to the steel wire has been picked out, if only crushed steel radial tires, the rubber crumbs is pure, no fiber in inside, but if crushed fiber tires or half-fiber tires also, there will be some fly fiber in the rubber crumb, so require this JYXF-500 Fiber Separator to pick fly fiber out from the rubber crumb.

Structure

Mainly consists of Motor, Speed Reducer, material inlet, Gearing Device, Impeller, Fanblades, Outside Cover, Round Wind Cover, Wind Guide Cover, Material Distributor Plate, Wind Guide Cover, Rubber Guide Plate, Fiber Guide Cover, Rubber, etc, as below sketch showing.

Principle

The principle is based on weight difference exists between the rubber powder and crushed fiber. Under air flow action, rubber powder and crushed fiber resulting in a different rising force, under the action of the wind, so that the rubber powder and fiber fall down in different places, to achieve the purpose of separation them.

Specification and Price

Photo Gallery

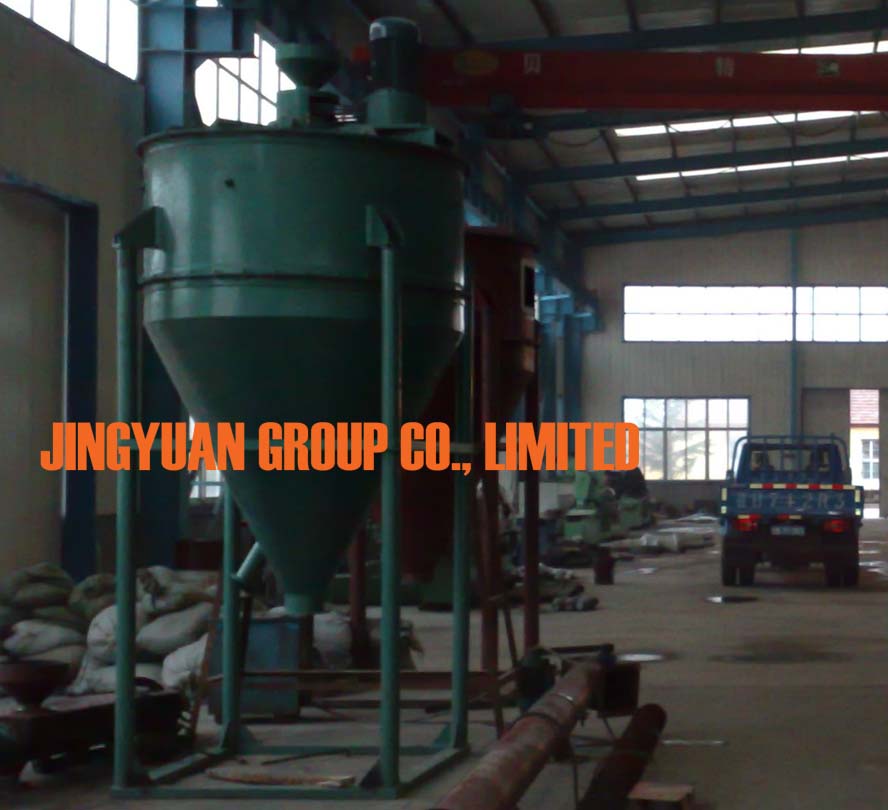

Following Photo Showing our Fiber Separator manufacturing workshop.

Fiber Separator also be named Fiber Picker, it is the machine to pick out fiber from rubber crumb.

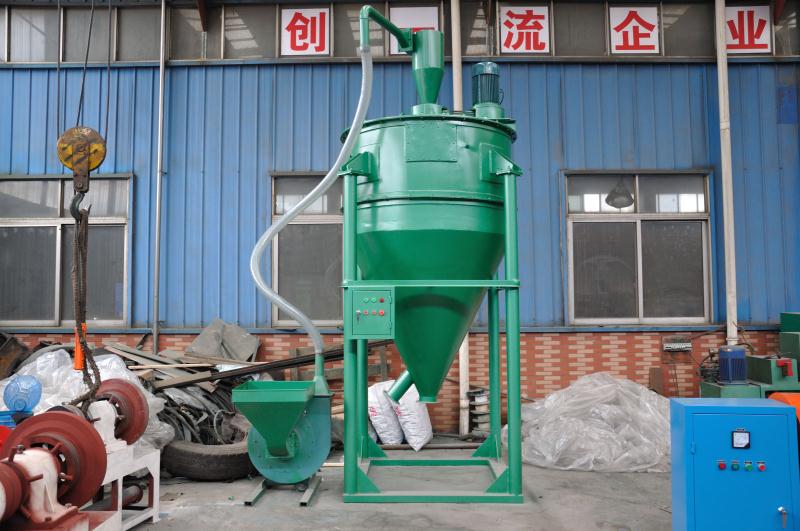

Following Photo showing a JYXF-500 Fiber Separator being ready for delivery.

JYXF-500 Fiber separator is the most effective device to filter air fiber from rubber crumb.

Following Photo showing a JYXF-500 Fiber Separator be loaded on a truck before delivery to our customer by road transportation

fiber separator/picker for sale before road transportion

Following photo showing one Fiber Separator be loaded into one container togethe with other machine to be delivered to our oversea customer by shipment.

It is main fiber tools to separate fiber out from rubber crumb.

Video Gallery

If want to see how it separate fiber from rubber crumb, please click below video and watch online.

If you have any question or comment about this Fiber Picker/Separator, please feel free to contact us or leave your comment below.

REMARKS ABOUT FIBER SEPARATOR SELECTION:

JYXF-500 Fiber Separator is ideal machine to separate fly fiber from rubber granule or rubber powder,the separated fiber is very clean as below photo.

Small Fiber(Recycled Tire Products of this plant and be Separated out by JYXF-500 Fiber Separator)

If you this JYXF-500 Fiber Separate is too expensive and you can accept Dirty Fly Fiber with some rubber powder inside as below photo, please use JYXF-150 Fiber Separator.

Mixture of Fly Fiber and Rubber Powder Removed by JYXF-150 Fiber Separator(The shortage of this Fiber Separator is can not Separate Fly Fiber and Rubber Powder)

If you think JYXF-500 fiber Separator is too expensive and JYXF-150 Fiber Separator is too poor, you can buy JYXF-200 Fiber Separator, the separated fly fiber by JYXF-200 Fiber Separator will be as below photo showing.

Fly fiber Separated by JYXF-200 Fiber Separator

If you crush fiber tires JYXKP series tire block crushing line, there will have coarse fiber thread and fiber ball shaped on top, if so, you can use JYXF-400 Coarse Fiber Separator to remove the fiber thread and fiber ball as below photo showing.

Fiber Thread and Fiber Ball Removed by JYXF-400 Fiber Separator
