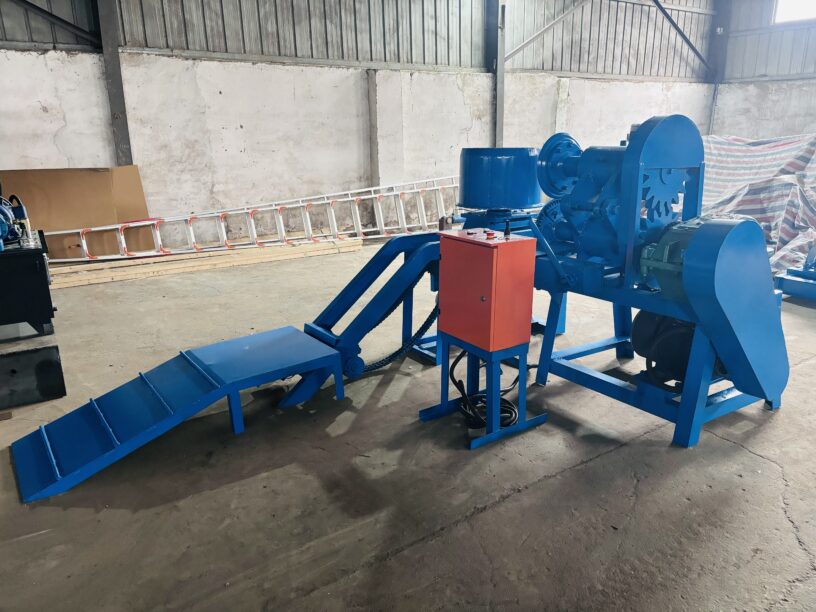

This Tire Cutting Machine can cut tires(up to 1300mm in diameter) into 3 parts(two tire rims and tire treads with sidewalls), one hour can cut 150-240 tires.
- Structure
Mainly consist of Frame, Motors, Chain Feeding System(Optional), Gear Reducr, Transmission System, Knives, etc.
- Principle
Small Motor drive Chain Feeding system(Optional) feed tires to the cutting area, big motor via reducer drive two disc knives making relative motion to shear tire treads and sidewalls off.
- Specification
| Model | JYLQ-1300 |
| Power: | 11kw(Cutting) + 3Kw(Feeding, Optional) |
| Dimension: | 1.6×1.2×1.4M(Cutting) + 2.2*0.6*1.4(Feeding, Optional) |
| Weight: | 1300Kg(Cutting) + 200Kg(Feeding, Optional) |
| Input: | Tires≦1300mm in diameter |
| Output: | Two tire rims and tire treads with sidewalls |
| Capacity: | 150-240Tires/hour |
| Knife Quantity: | 2pcs, Ø390mm |
| Knife Material: | Cr12mov Alloy |
| Knife Hardness: | 60HRC |
| Delivery Lead Time: | 10days(Exclude Legal Holiday). |
If this machine can not satisfy your requirement, maybe the machine you need is the JYQQTK-3845 Tire Cutter(Three Function in one) as below video.
For more details of JYQQTK-3845 Tire Cutter(Three Function in one) , please click JYQQTK-3845 Tire Cutter(Three Function in one) .
