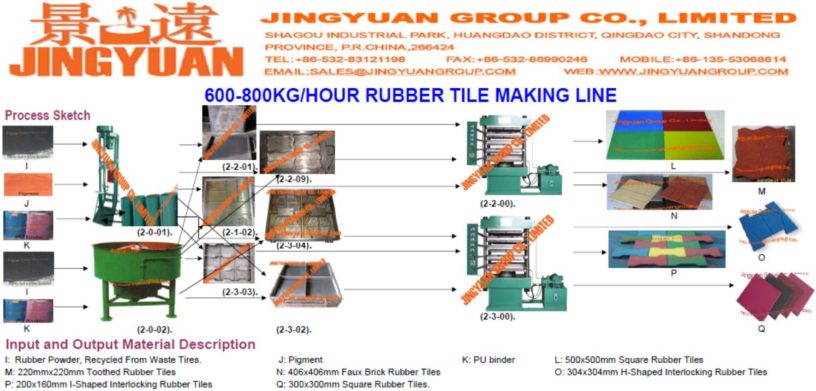

| Required Machinery And Price List is as below table: | |||||||||||||
| No. | Equipment name | Quantity | Total Price(FOB Qingdao) | ||||||||||
| (2-0-01). | 4-Barrel Mixer | 3 | Please contact us to inquire | ||||||||||
| (2-0-02). | 250L Mixer | 3 | Please contact us to inquire | ||||||||||
| (2-2-01). | 500X500mm Square Rubber Floor Tile Molding Mold(1 Cavity Per Female Mold) | 4 | MALE MOLDS | 8 | FEMALE MOLDS | Please contact us to inquire | |||||||
| (2-1-02). | 406X406mm Faux Brick Rubber Floor Tile Molding Mold(1 Cavity Per Female Mold) | 4 | MALE MOLDS | 8 | FEMALE MOLDS | Please contact us to inquire | |||||||
| (2-2-09). | 220X220mm Toothed Rubber Floor Tile Molding Mold(4 Cavities Per Female Mold) | 4 | MALE MOLDS | 8 | FEMALE MOLDS | Please contact us to inquire | |||||||
| (2-2-00). | 550X550mm, 4-Layer Vulcanizing Press(50 Ton Pressure) | 3 | Please contact us to inquire | ||||||||||
| (2-3-04). | 304X304mm H-Shaped Interlocking Rubber Floor Tile Molding Mold(4 Cavities Per Female Mold) | 4 | MALE MOLDS | 8 | FEMALE MOLDS | Please contact us to inquire | |||||||
| (2-3-03). | 200X160mm I-Shaped Interlocking Rubber Floor Tile Molding Mold(9 Cavities Per Female Mold) | 4 | MALE MOLDS | 8 | FEMALE MOLDS | Please contact us to inquire | |||||||
| (2-3-02). | 300X300mm Square Rubber Floor Tile Molding Mold(4 Cavities Per Female Mold) | 4 | MALE MOLDS | 8 | FEMALE MOLDS | Please contact us to inquire | |||||||
| (2-3-00). | 660X660mm, 4-Layer Vulcanizing Press(50 Ton Pressure) | 3 | Please contact us to inquire | ||||||||||
| Working Area:120-150m2, Worker:6-9 person, Average Power Consumption:55-65kw/hour | |||||||||||||
| Capacity: if making 10mm thick tiles, it can make 69-81Sq.m per hour. If making 25mm thick tiles, it can make 39-48Sq.m per hour. | |||||||||||||
| Remarks:
1). The power consumption is based on Electricity Heating Type, if your adopts steam heating type of oil heating type, electricity consumption can save 90%, but need spend money on boiler, pipes and coal. For small rubber tile making plant, it is better to adopts electricity heating type, for big rubber tile making plant, it is better to adopts steam heating type of oil heating type. 2). Production Lead Time: 20-30Days (Exclude Legal Holiday). |
|||||
Do you want to see the rubber tiles manufacturing process? If so, please click below video to watch online.
Raman Kumar Jha
1.I need your Molding Machines Technical Details
2. Types (Nos.) of mold you provide with machines.
3. Cost of Machines
4. Installation Process( Type of your supports)
admin
Hello,Raman Kumar Jha, thank you for inquiry about our rubber floor tile manufacturing machines, we have two types of plants to make rubber floor tiles by recycled rubber crumb, one is use vulcanizing press and rubber tile molds, the other one is making recycled rubber crumb into rubber flooring roll, then use punching machine to punch into different size rubber tiles. We just sent the price and details of both type of plants to your Email, now you can find the files in the inbox or spam box of your email, please. Best regards, Web Admin
