Application
This machine mainly to mix single-color material, for example:black rubber granules for rubber tile bottom layer use, its barrel fixed on the base.
Structure
This mixer consists of Frame, Motor, Speed Reducing System, Stirring Shaft, Fixed Barrel , etc.
Principle
Fill material in the barrl turn on motor, the motor will drive stirring shaft to mix the material, open the discharge door, the material will be driven out from the door.
Specification and Prices
| Motor: | 1pcs 2.2Kw Motor | 1pcs 3Kw Motor |
| Stirring Speed: | 85rpm | 85rpm |
| Barrel Capacity: | 100L | 200L |
| Dimension: | 0.8×0.6×1.0m | 1.0×0.8×0.9m |
| Weight: | 200kgs | 300kgs |
| Production Lead Time: | 20Days | 20Days |
| Price: | Please contact us to inquire | Please contact us to inquire |
Photo Gallery

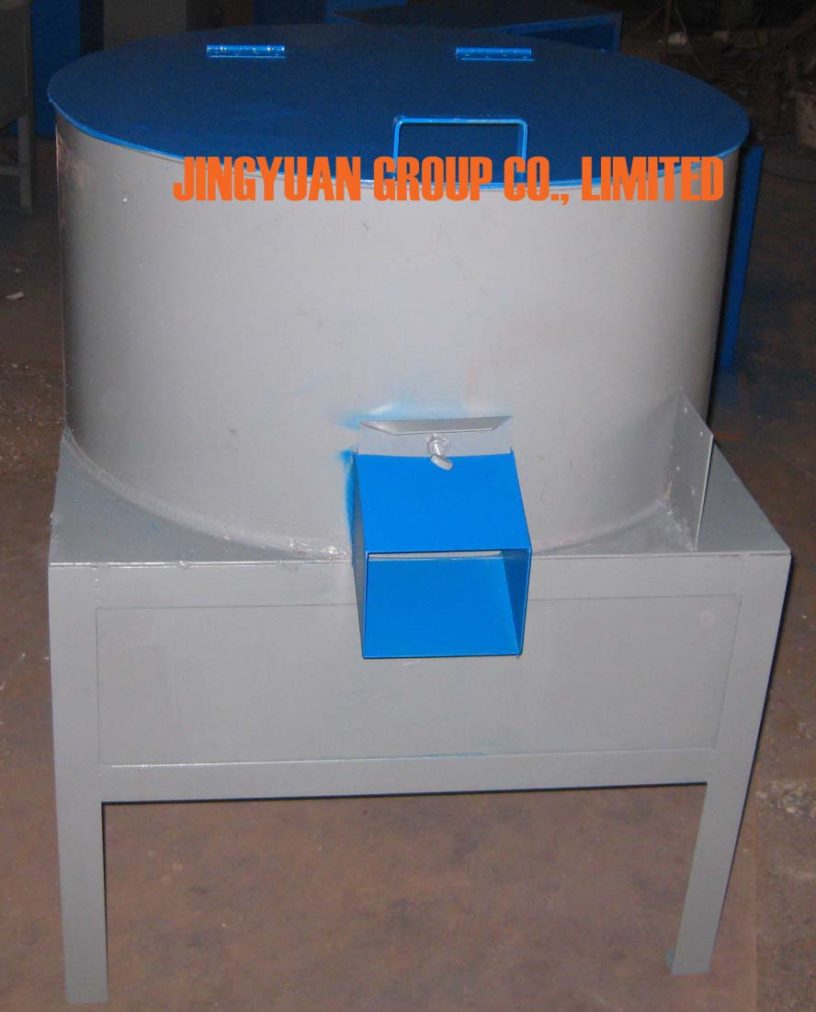

One 100L Rubber Crumb Mixer Painted according to buyer’s requirement
Two 200L Rubber Crumb Mixers Before Painting
Two 200L Rubber Crumb Mixers Packed With Air Bubble Plastic Film Before Shipment
Two 200L Rubber Crumb Mixers Loaded on Truck before deliver to our customer
